HEC - Hum Eliminators

Broadcast quality hum eliminators designed to eliminate hum and other interference in video lines up to 30MHz. Perfect for all RGB applications. Single and Multiple channel products are available.

HEC Hum Eliminators Data Sheet 2021.pdf

HEC Hum Eliminators Espanol 2022.pdf

Product

Impedance (Ohms)

Return Loss

Package

Mounting

Weight

Datasheet

HEC-50050 Ohms Unbalanced20 dB min.Hi-Impact ABS PlasticFour (4) 8-32 x 1/2" Inserts2.5 lbs.
-
HEC-100075 Ohms Unbalanced20 dB min.Hi-Impact ABS PlasticFour (4) 8-32 x 1/2" Inserts2.5 lbs.
-

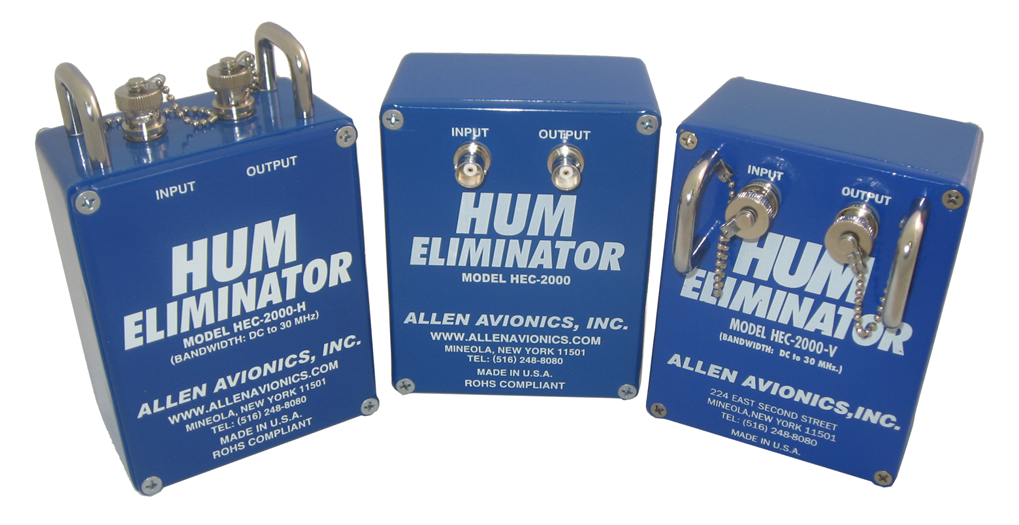

HEC-200075 Ohms Unbalanced20 dB min.Die Cast MetalFour (4) 6-32 x 1/2" Inserts3-1/2 lbs.
HEC-2000-H75 Ohms Unbalanced20 dB min.Die Cast MetalFour (4) 6-32 x 1/2" Inserts3-1/2 lbs.
HEC-2000-V75 Ohms Unbalanced20 dB min.Die Cast MetalFour (4) 6-32 x 1/2" Inserts3-1/2 lbs.
-
HEC-500075 Ohms Unbalanced20 dB MinDie Cast AluminumFour (4) 6-32 x 1/2" Inserts6 lbs.
-
